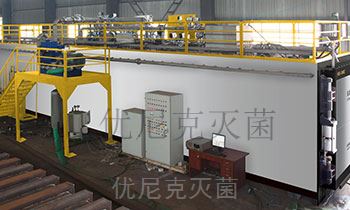

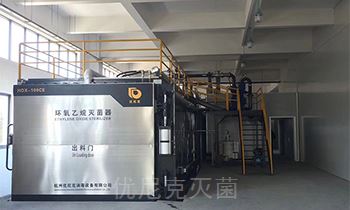

1. China's first self-developed oversized 100m³ automatic ethylene oxide sterilizer with independent intellectual property;

2. Using new magnetic coupling fan with foreign advanced technology so that the equipment runs up to a good temperature and humidity uniformity;

3.International standard pallet (1.2 m*1.0 m) and double-row device for achieving maximum effective loading rate;

4. The software on the equipment is independently developed by our company and possesses software property. Software design preserves the remote data reading function, remote monitoring function and the function of free customization to generate specified format reports. Data interface conforms to the software development standards;

5. Referring to ISO11135:2014, the equipment adds several real-time monitoring points, which can monitor the running state of hardware in real time, such as monitoring fan running state, monitoring vacuum pump running state, monitoring EO concentration and so on;

6. The use of EO concentration sensor imported from the United States;

7. Automatic revolving door mechanism;

HDX series large-scale ethylene oxide sterilizer specifications (Customizable if necessary)

No.

Model

(m³)

   Inside size

(L*W*H/mm)

Outside size

   (L*W*H/mm)

    Number of loading trays

(1200mm*1000mm)

1 HDX- 100 16800x2700x2200 17300x3200x4800 30
2 HDX - 95 16000x2700x2200 16500x3200x4800 28
3 HDX - 90 15300x2700x2200 15800x3200x4800 26
4 HDX - 85 14500x2700x2200 15000x3200x4800 26
5 HDX - 80 13500x2700x2200 14000x3200x4800 24
6 HDX - 75 12600x2700x2200 13100x3200x4800 22
7 HDX - 70 11800x2700x2200 12300x3200x4800 22
8 HDX - 65 11000x2700x2200 11500x3200x4800 20
9 HDX - 60 10000x2700x2200 10500x3200x4800 18
10 HDX - 55 15200x1500x2400 15700x3100x4100 14
11 HDX - 50 15200x1500x2200 15700x3100x4100 14
